Custom RGB backlit mechanical gaming keyboard from Chinese manufacturer, personalize any parts you want. Low minimum order at cheap factory wholesale price, high quality promised.
Languages

Mechanical Keyboard Parameters

Parameters of iGK6X(61,61p,62, 64) series mechanical keyboard.

Dimension:293*103*40mm
Net weight: 600g(with plastic case)/1230g(with metal case)
Keys: 61/62/64
Back light: RGB full color (16.8M colors)
Custom items: switch,case, key caps
anti ghosting: anti-ghosting for all keys
Connection: USB-type C
USB Cable: 1.5m length
Input:DC5V-240mA
Driver: with driver
Keyboard supported OS: Win, Mac and etc
Driver supported OS: Win XP/7/8/10 (not support Mac)

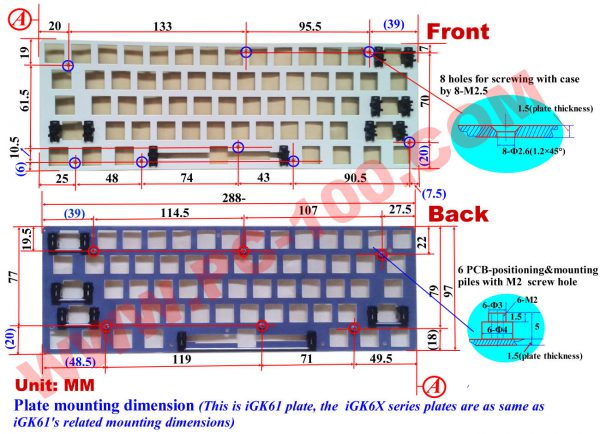

iGK6X plate mounting dimensions & size

iGK60 mechanical keyboard' plate mounting dimension.  The plate has 6 positioning & mounting piles on backside to mount with the PCB by 6 M2 screws, and has 8 holes on front side to mount with keyboard case by 8 M2.5 screws.

iGK60 mechanical keyboard’ plate mounting dimension. The plate has 6 positioning & mounting piles on backside to mount with the PCB by 6 M2 screws, and has 8 holes on front side to mount with keyboard case by 8 M2.5 screws.

iGK6X mechanical keyboard keycaps’ size

keycaps-set-size-of-iGK62-mechanical-keyboard keycaps-set-size-of-iGK64-mechanical-keyboard keycaps-set-size-of-iGK61-keyboard




Details and Specifications of Standard Mechanical Keyboard

Mechanical Keyboard with removeable panel

Mechanical Keyboard with removeable panel

Mechanical Keyboard with removeable panel

Mechanical Keyboard with removeable panel

Cable: 180CM (70.8 inch) USB with cable tie
Keyboard Material: ABS
Compaticity: Windows, Mac, Linux
Keycap Material: UV Coated ABS
Physical Layout US QWERTY
Logical Layout ANSI
Color: Custom
Keycaps: Custom
Panel Frame: can be selected from several styles.
key switch: Mx series ( or Custom)
Backlight Style: Predefine 21 styles of backlit (can be user defined)
Dimensions: 445×142×30 MM (17.5×5.6×1.2 inch)
N.W.: 1088g
Interface: Wired USB
Keys: 104 keys or custom
Anti-ghosting:  All keys anti-ghosting

Custom mechanical keyboard with RGB full color back light effects

custom mechanical keyboard with RGB full color back light effects
